Available in semi-waterproof and waterproof models

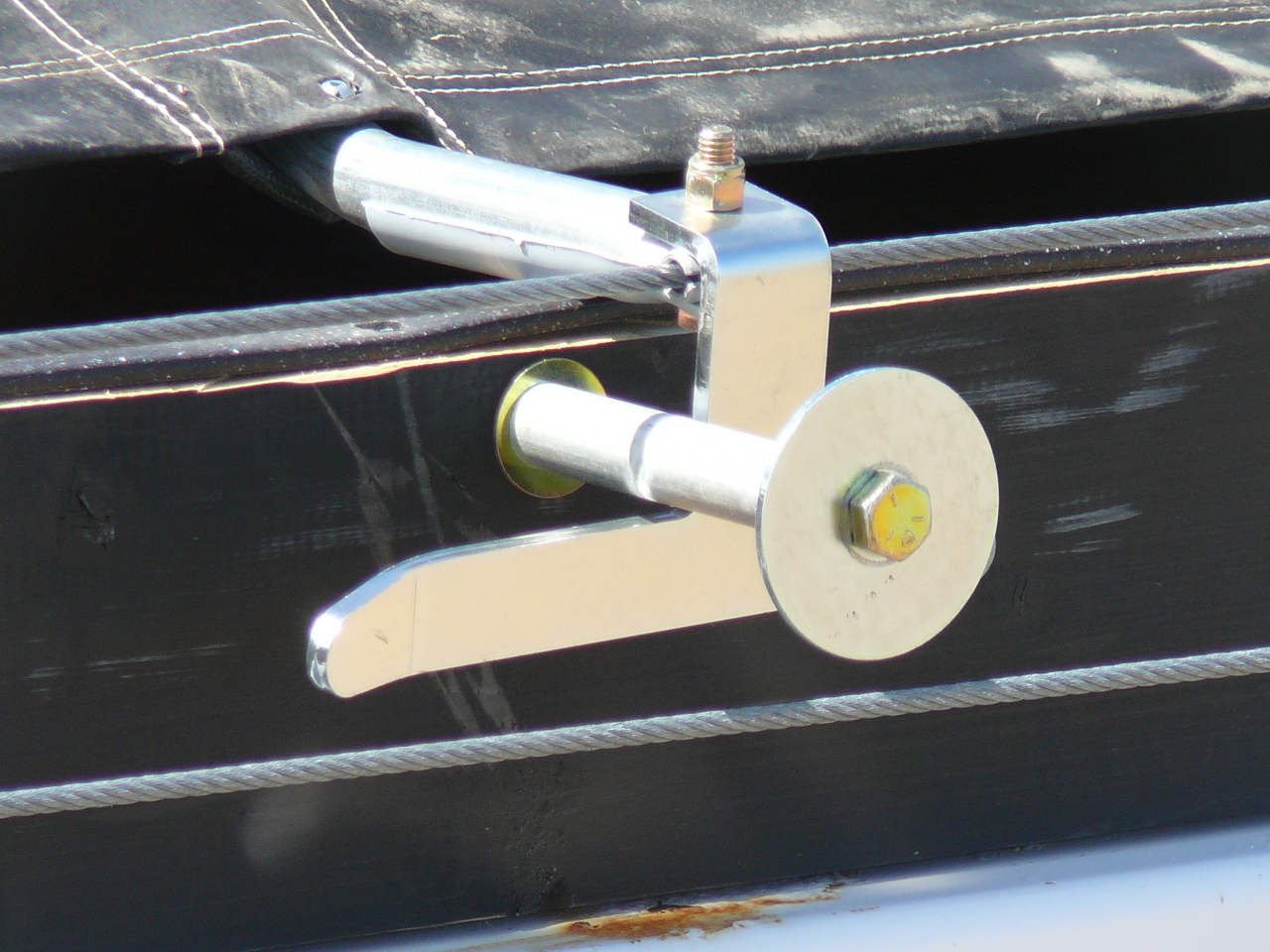

The rear tension adjustment is simple and easy to use. A 1/4″ steel aircraft cable is used with pulleys to open and close the tarp system. A PVC slider is mounted on the underside on each end of the bows/ hoops to reduce friction.

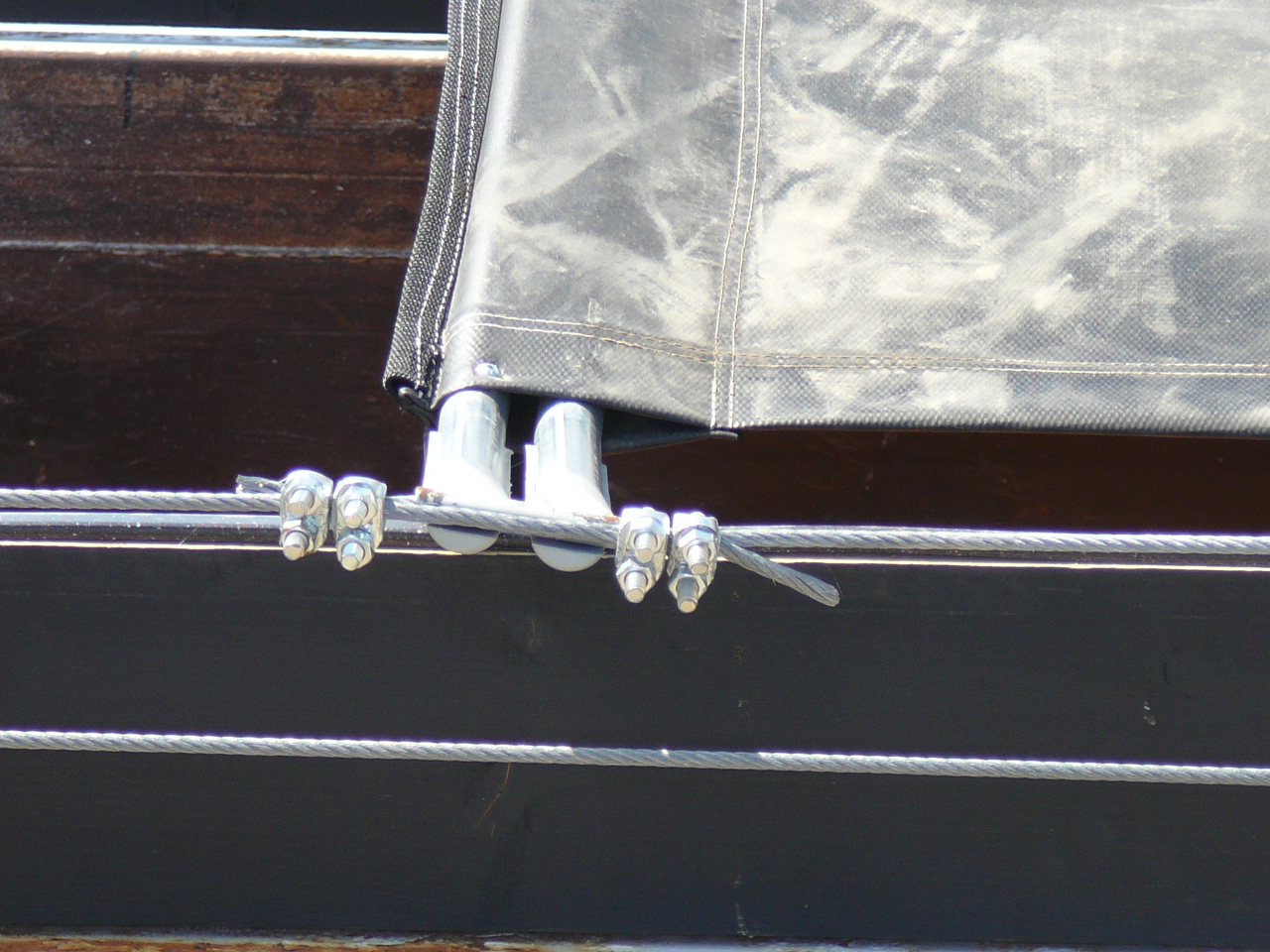

Specially designed lock clips are used to secure the tarp fabric assembly to the trailer wall to prevent billowing therefore preventing premature wear.
The standard 12″ high bows/ hoops and fabric move together during operation. This height enables the tarp to be stored clear of heaped loads and to remain stored until needed. A stainless steel front shaft makes bearing installation easier and reduces corrosion.

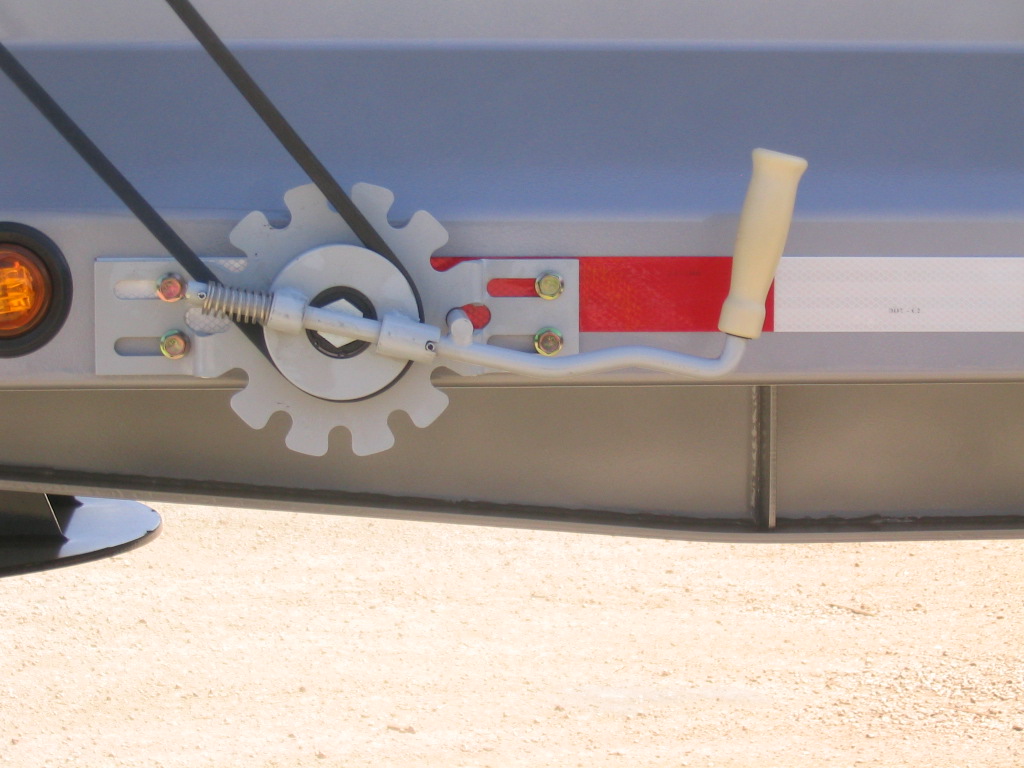

A specially designed, 12 position crank assembly secures handle during operation.
Rear Double Hoop keeps tarp straight and tight.

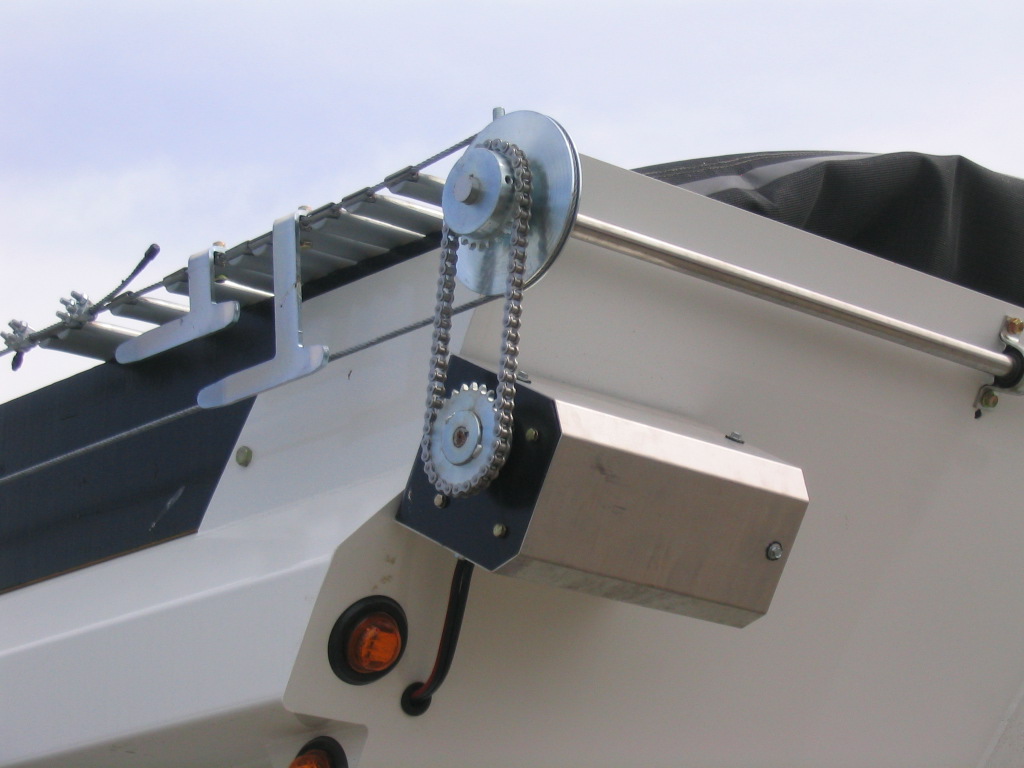

Electric chain drive (shown) or optional belt drive available

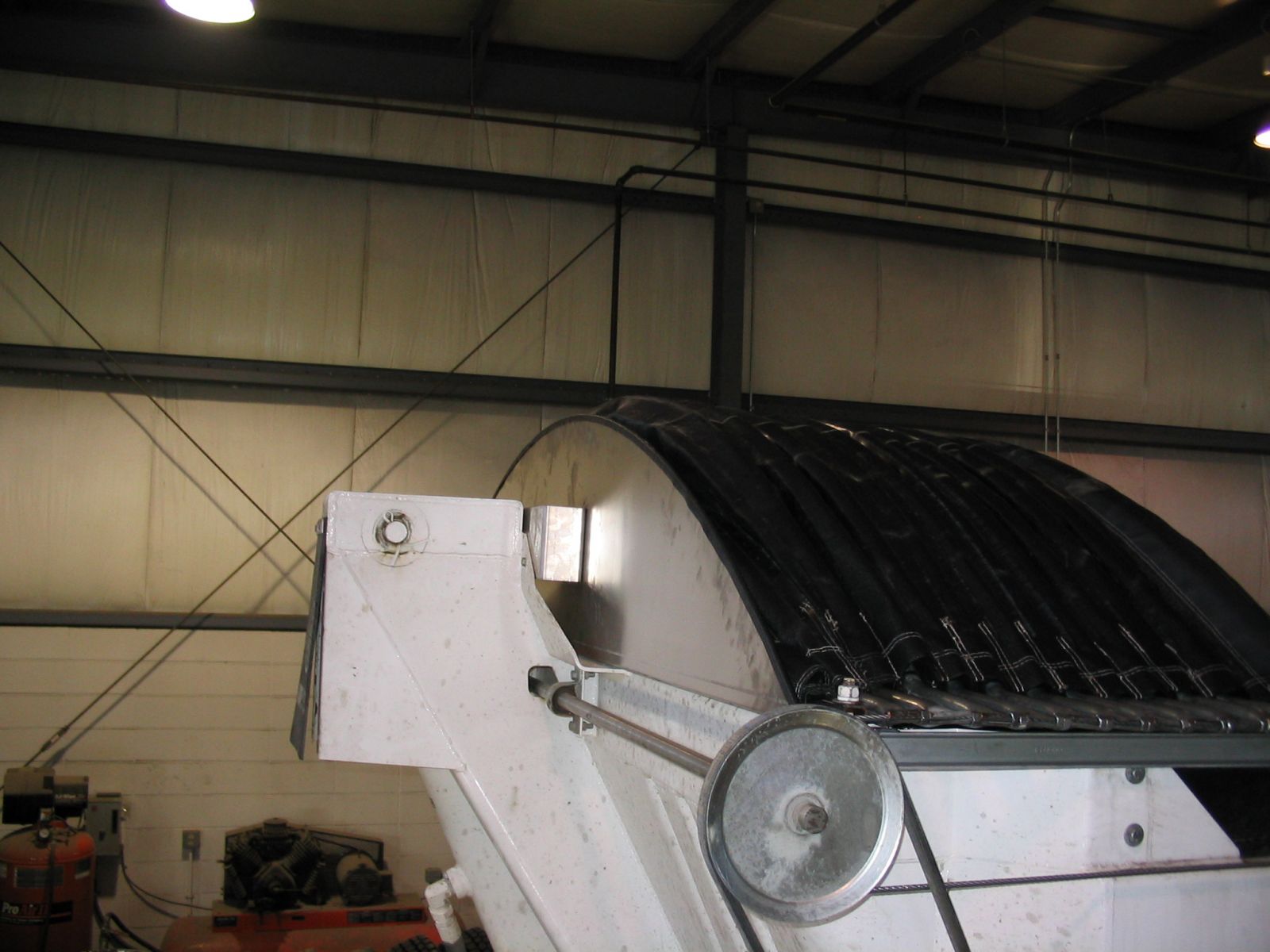

Optional front Wind Deflector. First hoop mounts directly to the wind deflector to prevent wind whip on the tarp material and cables.
OPTIONS Available for all models:
– 18″ rise bows/ hoops
– 4 types of fabrics
– 20oz vinyl (Available in 18 different colors)
– 22oz vinyl (Available in White, Black, Royal Blue, Red)
– Mesh (Available in Red, Blue, Black, Green, Yellow, Orange) Std Model only
– Neoprene – Heat and Chemical resistant (Black Only)
– Sprocket Drive (using nickel or stainless steel chain)
– Front Aluminum Checker plate Wind Deflector
– Semi-Waterproof and Watershed models
– Electrically operated by rocker switch or Wireless Remote

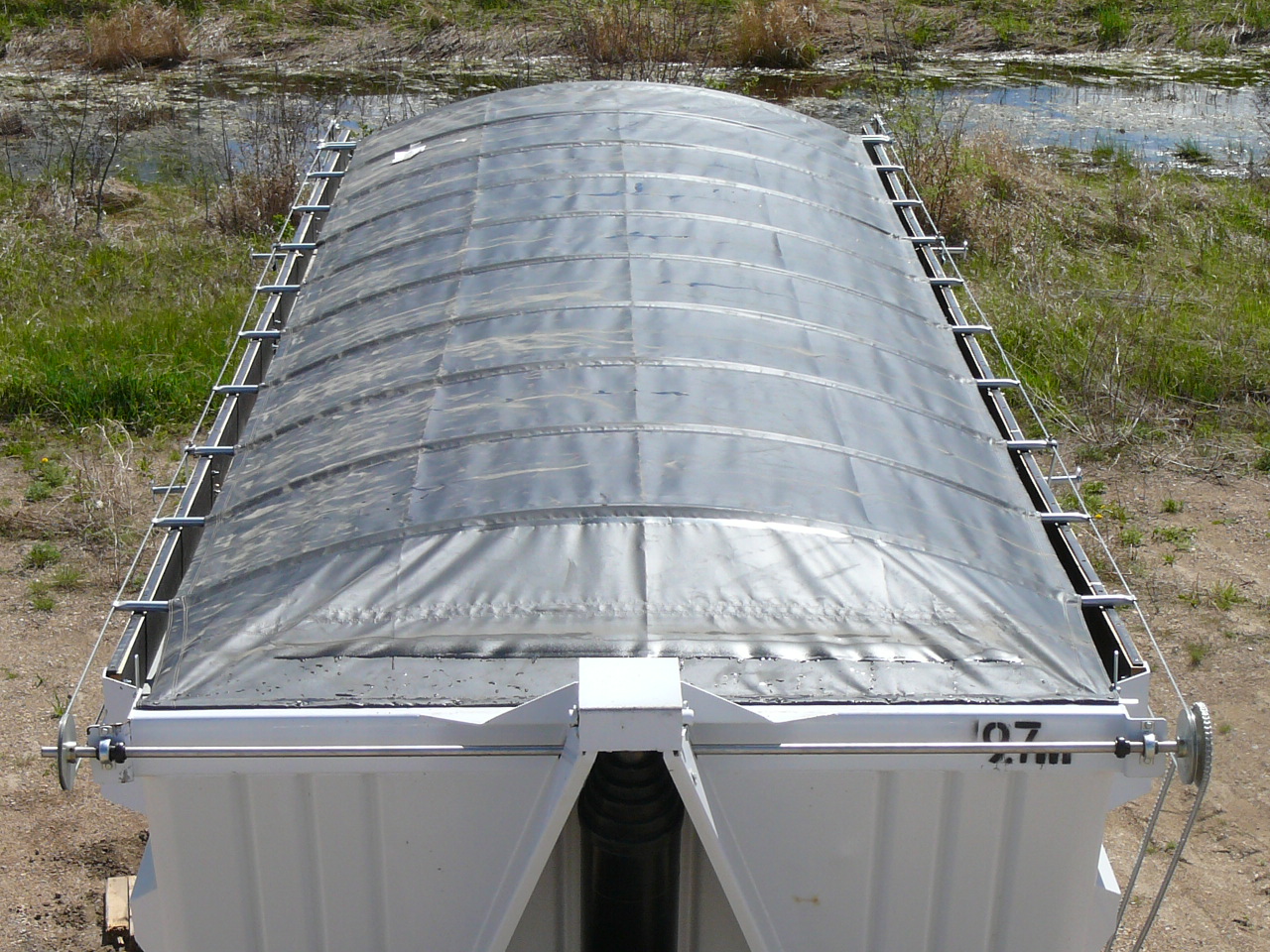

Standard Gravel Guard
Tarp material sits to the inside of the boards of the trailer

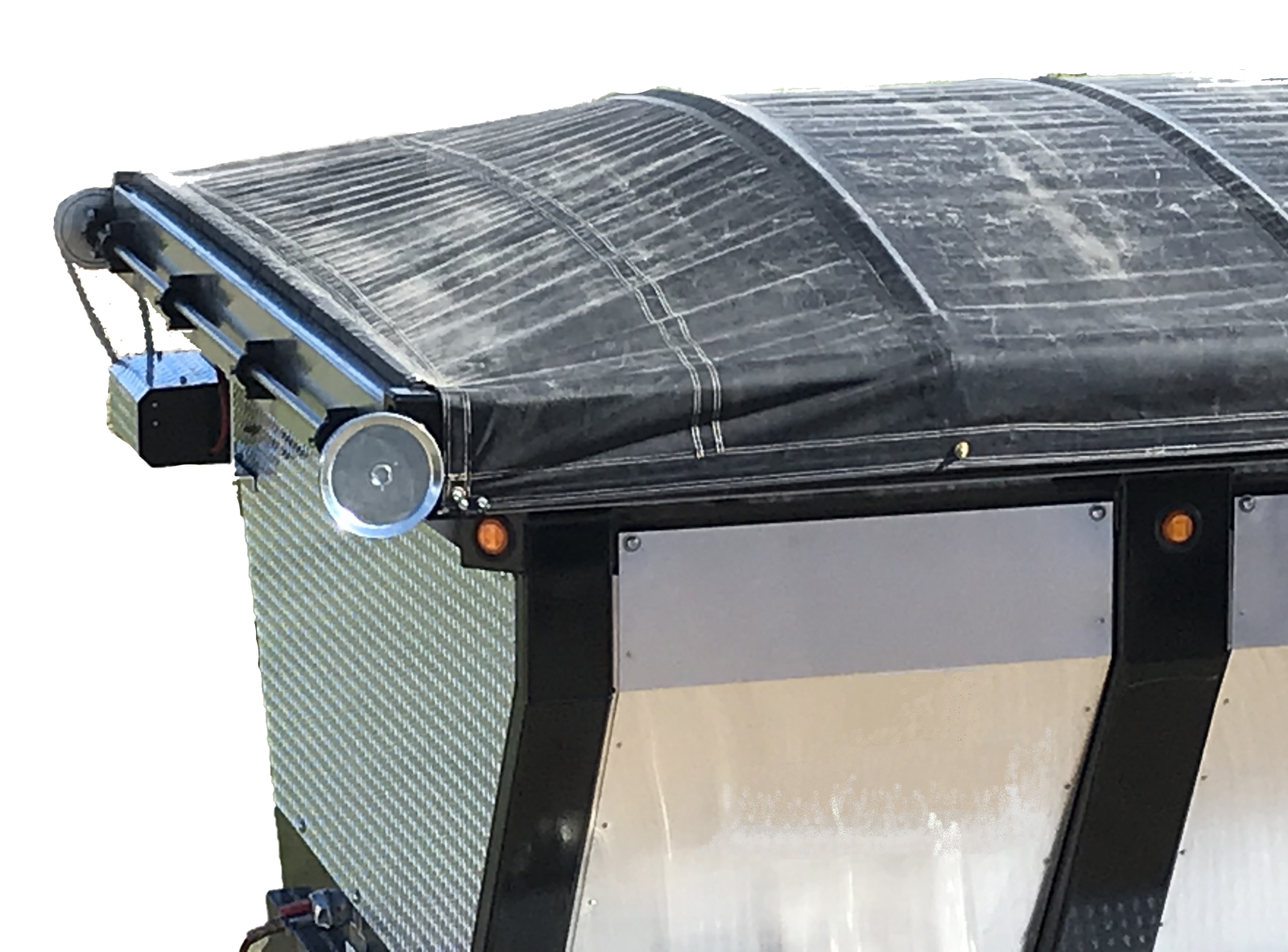

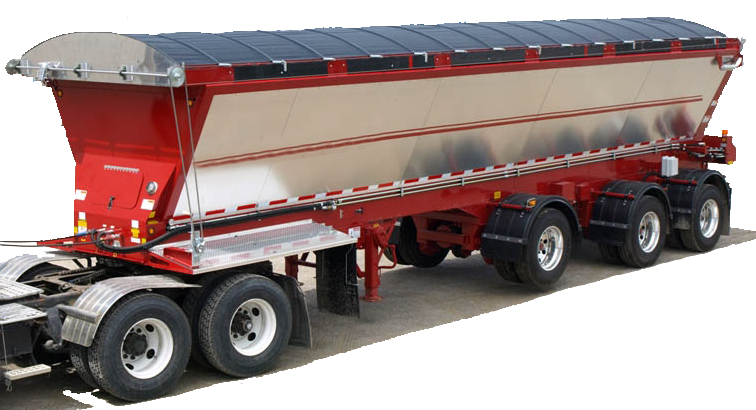

Semi – Waterproof Model
Tarp material sits to the outside of the boards of the trailer

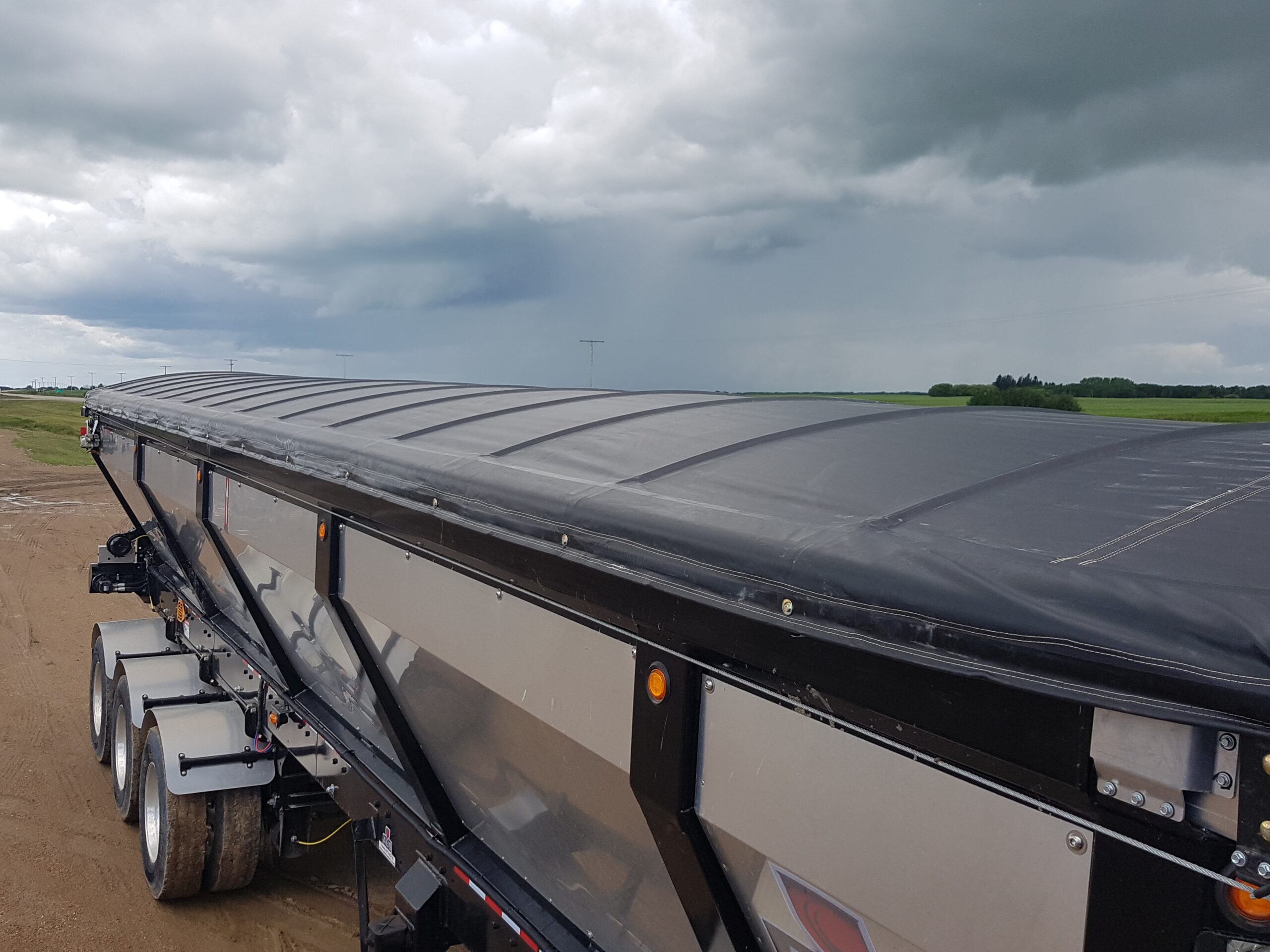

Watershed Model
Tarp material comes down the side of the trailer shedding all water and holding in heat
Available Colours
